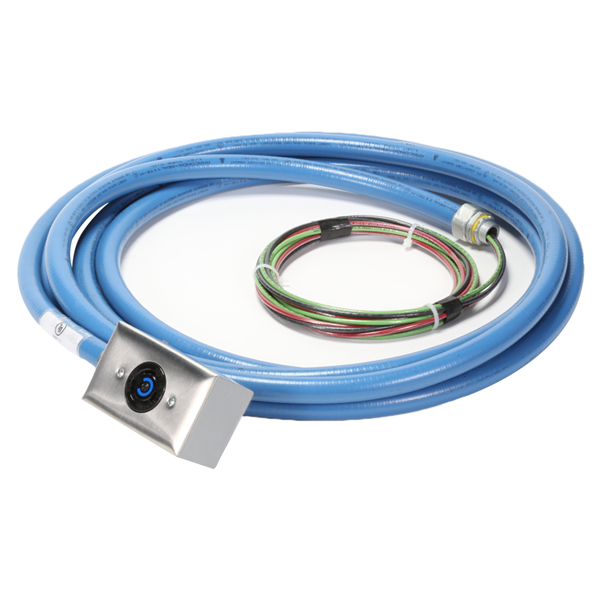

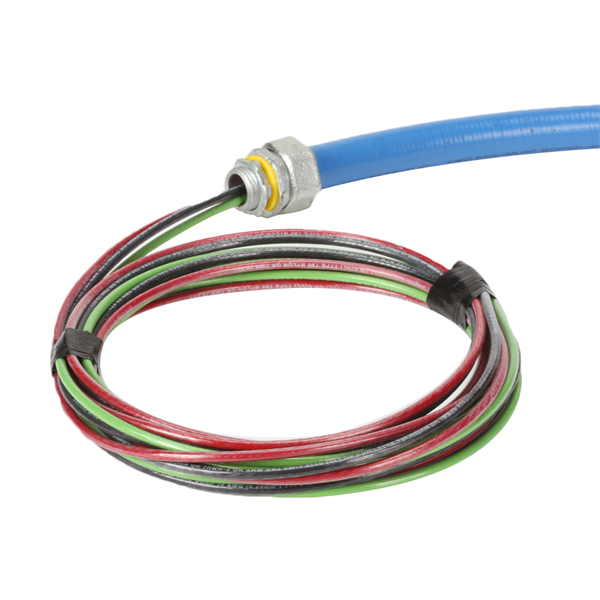

Liquid tight PDU cable with 1 x L14-20R receptacle and an 8′ wire tail
If you have any issues while placing your order, please give us a call at 1-800-590-8610
L14-20R PDU Whips, 20A, 125/250V 4-Wire Cables
$0.00
L14-20R PDU Whips – 20A, 125/250V 4-Wire Data Center PDU Cables
Download PDU Whip Excel Configurator – Use for large quantities and further customizaton options – email [email protected]
 |
* Data Center PDU cables w/ 1 x L14-20R outlet Box
* For use in Data Center raised floors * Available in 8 colors, custom lengths and configurations * Custom labeling available * Several mounting options available * Custom length tails for termination to breaker panel * UL Listed, Built to NEC Article 645.50(E) |
Specifications:
| Receptacle | NEMA L14-20R x 1 |
| Amperage | 20A |
| Voltage | 125/250V |
| Phase | Single Phase |
| Lengths | 5 foot – 200 foot – Custom Lengths |
| Colors Available |
Blue, Red, Yellow, Black, Green, Gray, Orange, White |
| Number of Wires | 4 Wire |
| Wire Gauge | 12 AWG |
| Cable | THHN Stranded Wire (Green/Black/White/Red) |
| Conduit Width | 1/2″ |
| Circuit Breaker | Optional |
Technical Notes: UL Listed, Uses Anaconda LFMC SealTite conduit
Applications: For use in raised data center floors to provide power distribution to server rack equipment
Part number: IBX-L1420R1-XXYY – XX Denotes Length, YY is color (BLK, BL, RD, GY, GN, YL, OR, WH)
Custom Made and Non-Returnable
L14-20 whip, L14-20R PDU, NEMA L14-20 PDU Whips, Power Distribution Assemblies, Circuit Branch Cables
Customization Options:
