Custom PDU cables with 4 x L6-15R receptacle and a custom length wire tail for use in raised data center floors
If you have any issues while placing your order, please give us a call at 1-800-590-8610
L6-15R Quad Box PDU Whips, 15A, 250V, 3-Wire Cables
$0.00

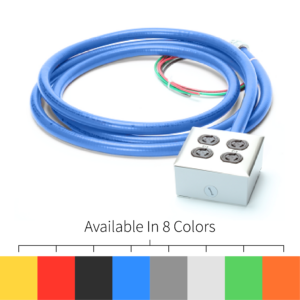

L6-15R Quad Box PDU Whips – 15A, 250V, 3-Wire Data Center PDU Cables
Download PDU Whip Excel Configurator – Use for large quantities and further customizaton options – email [email protected]
 |
* Data Center PDU cables w/ 4 x L6-15R outlet Box
* For use in Data Center raised floors * Available in 8 colors, custom lengths and configurations * Custom labeling available * Several mounting options available * Custom length tails for termination to breaker panel * UL Listed, Built to NEC Article 645.50(E) |
Specifications:
| Receptacle | NEMA L6-15R x 4 |
| Amperage | 15A |
| Voltage | 250V |
| Phase | Single Phase |
| Lengths | 5 foot – 200 foot – Custom Lengths |
| Colors Available |
Blue, Red, Yellow, Black, Green, Gray, Orange, White |
| Number of Wires | 3 Wire |
| Wire Gauge | 14 AWG |
| Cable | THHN Stranded Wire (Green/Black/Red) |
| Conduit Width | 1/2″ |
| Circuit Breaker | Optional |
.png)
Technical Notes: UL Listed, Uses Anaconda LFMC SealTite conduit,
Applications: For use in raised data center floors to provide power distribution to server rack equipment
Part number: IBX-L615R4-XXYY – XX Denotes Length, YY is color (BLK, BL, RD, GY, GN, YL, OR, WH)
Custom Made and Non-Returnable
L6-15R Duplex whip, NEMA L615 PDU cables, L6-15 Power Distribution Assemblies, Branch Circuit Cables
Customization Options:
.png)
