IEC C14 to C13 Y Splitter Cables
If you have any issues while placing your order, please give us a call at 1-800-590-8610

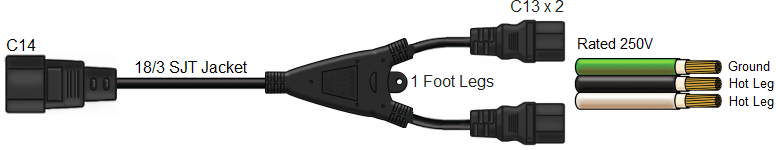

* C14 to C13 X 2 splitter cords
* Split a C14 plug out to 2x C13 legs * Custom lengths available * Rated for 10A and 250V * 18 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified (File # E360079) * Call 1-800-590-8610 for qty. discounts |
Specifications:
Plug Type | IEC C14 |
Connector Type | IEC C13 x 2 |
Length | 1 – 10 Feet |
Amperage | 10 Amps |
Voltage | 250V |
Number of Conductors | 3 |
Wire Gauge | 18/3 AWG |
Jacket Type | SJT |
Temperature Rating |
105º C |
Color | Black |
Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Certifications | UL Listed |
Documents: RoHS REACH Conflict Minerals Report (CMRT) Tech Notes: Breaks out a C14 male to 2x female C13 connectors
Applications: Share a single C13 receptacle between multiple devices
Part Number: IBX-2X2307-XX (XX = Length)
Application Shots:
