IEC C14 to 5-15R Y Splitter Cables
If you have any issues while placing your order, please give us a call at 1-800-590-8610

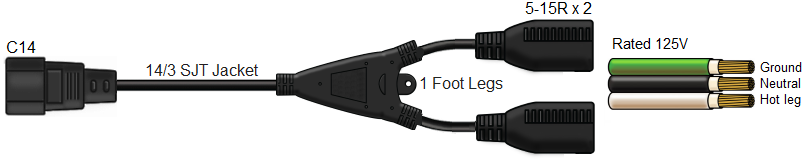

C14 to 2 x 5-15R Splitter Power Cords
$0.00
C14 to 5-15R Splitter Cord, 2 x 5-15 Legs, 15 Amps, 125V, 14/3 SJT
 |
* C14 to 2x 5-15R splitter power cords * Plug 2x 5-15P plugs into a C13 outlet * Custom lengths available * Rated for 15A and 125V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | C14 |
| Connector Type | 5-15R X 2 |
| Length | 3 and 6 Feet |
| Amperage | 15 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |
Tech Notes: Share one C13 receptacle to power 2x 5-15P corded devices
Applications: Connect server and network equipment to a rack PDU in a rack enclosure
Related Terms: 5-15 to C14 Splitter cable, IEC 320 C14 to 5-15R Splitter power cord
Part Number: IBX-2312-X (X = Length)
Application Shots:
