5-15P to C19 Power Cords, 15 Amps, 125V, 14/3 SJT

$0.00

NEMA 15 Amp 5-15P to C19 Server Power Cords

Choose Length *

SKU: IBX-4923-XX

NEMA 5-15P to C19 Power Cords, 15 Amps, 125V, 14/3 SJT Cable Jacket

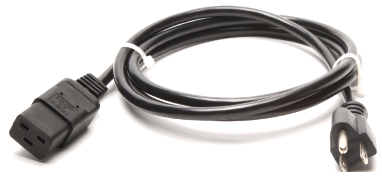

5-15p to c19 * 5-15P plug to C19 connector power cords

* Connect computers/servers to a rack pdu

* Available in multiple colors and lengths

* Rated for 15A and 125V

* 14 AWG, 3 Wire SJT cable jacket

UL Listed, RoHS certified

Call 1-800-590-8610 for qty. discounts


Specifications:

Plug Type      5-15P
Connector Type C19
Length 1, 3, 6, 10, 12, 15 Foot  (Custom Lengths Available)
Amperage 15 Amps
Voltage                               125V
Number of Conductors 3
Wire Gauge 14 AWG
Jacket Type SJT
Temperature Rating
105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity
Certifications cUL, UL Listed

nema 5-15p to c19 iec

Tech Notes:  Colored power cords allow you to easily identify various power paths within a data center server rack

 Applications: Connect server and network equipment to a rack PDU in a rack enclosure

 Related Terms: C19 to 5-15P cable,  C19 5-15 power cord,  C19 to 5-15P cords

iron box power cordsPart Number: IBX-4923-XX (XX = Length)

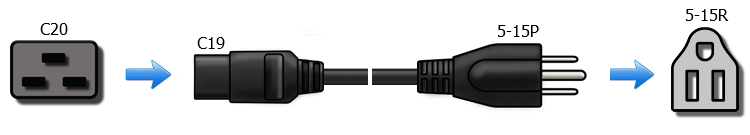

 Application Shots:C19 to 5-15
