C20 to 2x C13 Splitter Power Cords

$0.00

IEC C20 to C13 Y Splitter Cables

Choose Length *

SKU: IBX-2X6454-XX

 C20 to C13 Splitter Power Cords, 2x C13 Legs, 15 Amps, 250V, 14/3 AWG Cable

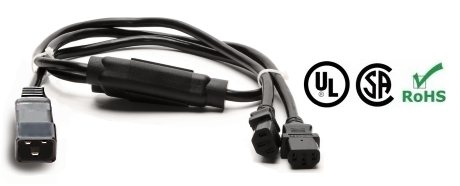

    c20 to c13 Splitter Cable

* C20 to C13 X 2 power cords

* Split a C20 plug out to 2x C13 branches

* Custom lengths available

* Rated for 15A and 250V

* 12 AWG Lead, 14 AWG Legs

* 3 Wire SJT cable jacket

UL Listed, RoHS certified

Call 1-800-590-8610 for qty. discounts


Specifications:

Plug Type                        C20
Connector Type 2x C13
Length 2-6 Feet (Custom Lengths Available)
Amperage 15 Amps
Voltage                               250V
Number of Conductors 3
Wire Gauge 12 AWG Lead / 14 AWG Legs
Jacket Type SJT
Temperature Rating
105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity
Certifications cUL, UL Listed (File # E360079)

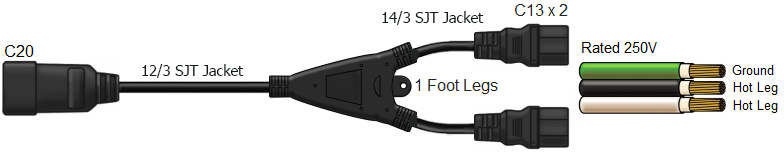

c20 to c13 splitter cable

 Tech Notes: Splits a C20 male plug out to two female C13 connectors

 Applications: Connect server and network equipment to a rack PDU in a rack enclosure

 Related Terms: C13 to C20 Y Splitter cable,  IEC 320 C20 to C13 Splitter power cord, PDU Splitter cords

iron box power cordsPart Number: IBX-2X6454-XX (X = Length)

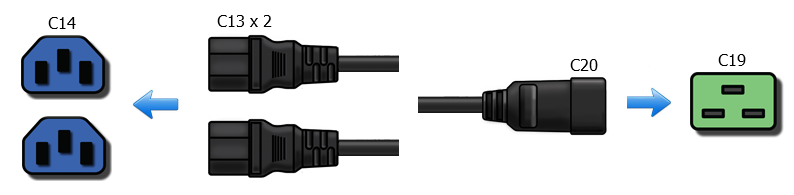

Application Shots: c20 to 2 c13 legs
