6-15P to C15 Plug Adapter Power Cord

$0.00

NEMA 6-15P to C15 Power Adapter Cables

Choose Length *

SKU: IBX-2198-XX

6-15P to C15 Plug Adapter, 1 Foot, 15 Amps, 250V, 14/3 SJT Power Cord

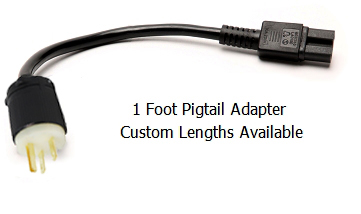

    6-15P Pigtail

* 6-15P to C15 plug adapter power cord

* C15 is also known as a “notched C13”

* Available in custom lengths and wire AWG

* Rated for 15A and 250V

* 14 AWG, 3 Wire SJT cable jacket

* UL Listed, RoHS certified

* Call 1-800-590-8610 for qty. discounts

Specifications:

Plug Type                        6-15P
Connector Type C15
Length 1 Foot (Custom Lengths Available)
Amperage 15 Amps
Voltage                               250V
Number of Conductors 3
Wire Gauge 14 AWG
Jacket Type SJT
Temperature Rating
 105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity
Certifications cUL, UL Listed

  6-15P to C15

Tech Notes: 1 foot of 14/3 AWG wire w/ molded 6-15P plug and C15 connector

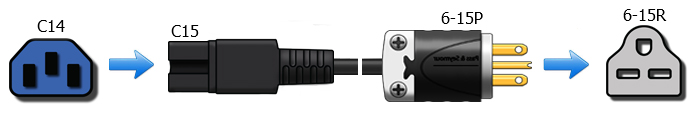

Applications: Adapt an IEC C14 plug to fit into a NEMA 6-15R outlet

Related Terms: C15 to 6-15P cord adapter,  IEC320 615P power cord plug adapter

iron box power cordsPart Number: IBX-2198-XX (XX denotes length)

Application Shots: C15 to 6-15
