NEMA L6-30P to L14-30R Power Adapter Cables
If you have any issues while placing your order, please give us a call at 1-800-590-8610
L6-30P to L14-30R Plug Adapter Power Cord
$61.74

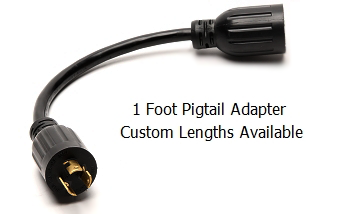

L6-30P to L14-30R Plug Adapter, 1 Foot, 30 Amps, 250V, 10/3 SJT Power Cord
.png) |
* L6-30P to L14-30R plug adapter power cord * L14-30R mates with a L14-30P male plug * Available in custom lengths and wire AWG * Rated for 30A and 250V * 10 AWG, 3 Wire SJT cable jacket * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | L6-30P |
| Connector Type | L14-30R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 30 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 10 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
.jpg)

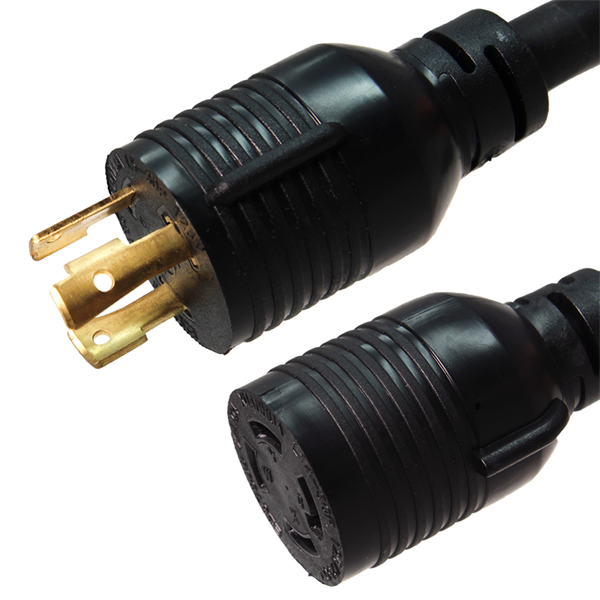

Tech Notes: 1 foot of 10/3 AWG wire w/ molded L6-30P plug and heavy duty L14-30R connector
Applications: Adapt a NEMA L14-30P plug to fit into a NEMA L6-30R outlet
**This item is custom built to order.
Related Terms: L14-30R to L6-30P cord adapter, L630P to L1430R power cable adapter, L6-30P L14-30R Pigtail
Part Number: IBX-3539-X (X = Length)
Application Shots: .jpg)
