NEMA L5-20P to 5-20R Power Adapter Cables
If you have any issues while placing your order, please give us a call at 1-800-590-8610
L5-20P to 5-20R Plug Adapter Power Cord
$34.35
L5-20P to 5-20R Plug Adapter, 1 Foot, 20 Amps, 125V, 12/3 SJT Power Cord
 |

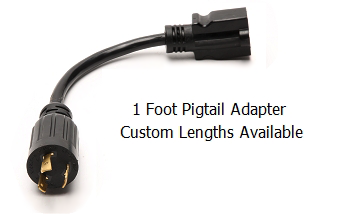

* L5-20P to 5-20R plug adapter power cord
* 5-20R mates with a 5-15P or a 5-20P male plug * Available in custom lengths and wire AWG * Rated for 20A and 125V * 12 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | L5-20P |
| Connector Type | 5-20R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |
.png)
Tech Notes: 1 foot of 12/3 AWG wire w/ molded L5-20P plug and 5-15/20R connector
Applications: Adapt a NEMA 5-15P or a 5-20P plug to fit into a NEMA L5-20R outlet
Related Terms: 5-20R to L5-20P cord adapter, L520P to 520R plug adapter, L5-20P 5-20R Pigtail
Part Number: IBX-4955-X (X = Length)
Application Shots:
.png)
