NEMA 6-20P to L6-15R Power Adapter Cables
If you have any issues while placing your order, please give us a call at 1-800-590-8610
6-20P to L6-15R Plug Adapter Power Cord
$0.00

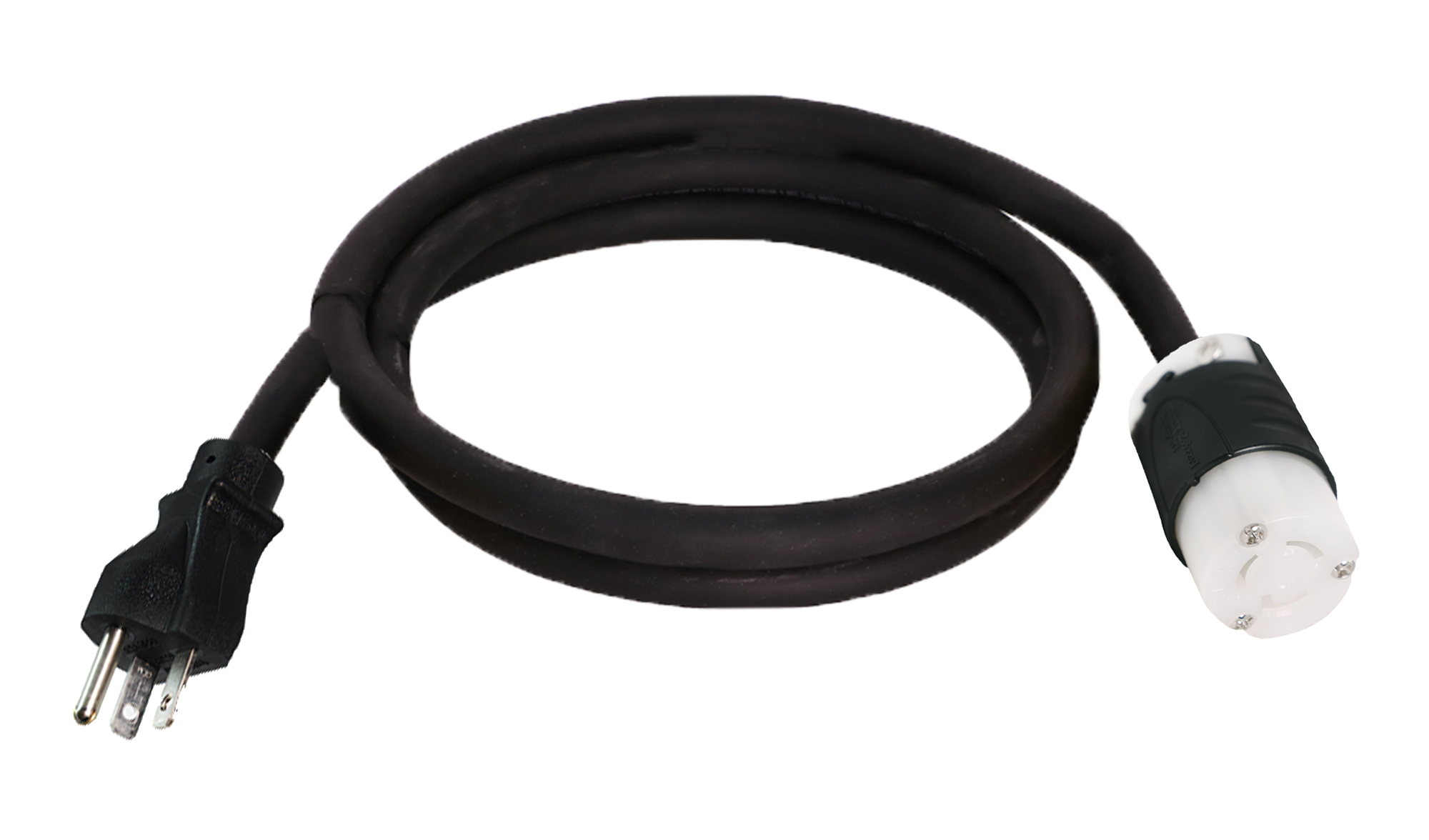

6-20P to L6-15R Plug Adapter, 1 Foot, 15 Amps, 250V, 14/3 SJT Power Cord
 |
* 6-20P to L6-15R plug adapter power cord * L6-15R mates with a L6-15P male plug * Available in custom lengths and wire AWG * Rated for 15A and 250V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | 6-20P |
| Connector Type | L6-15R |
| Length | 1 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |
Tech Notes: 1 foot of 14/3 AWG wire w/ molded 6-20P plug and L6-15R connector

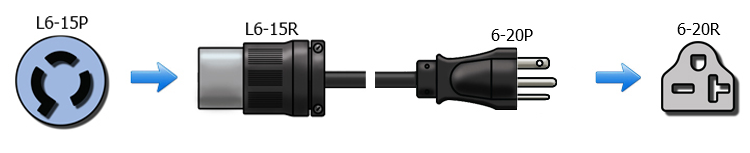

Applications: Adapt a NEMA L6-15R plug to fit into a NEMA 6-20R outlet
**This item is custom built to order.
Related Terms: L6-15r to 6-20P cord adapter, 620P to L615R power cable adapter, 6-20P L6-15R Pigtail
Part Number: IBX-8685-X (X = Length)
