L5-15P to C19 Power Cords, 15A, 125V, 14/3 SJT

$0.00

NEMA 15 Amp L5-15P to IEC 60320 C19 Power Cables

Choose Your Length *

SKU: IBX-2905

NEMA L5-15P to IEC C19 Power Cords – 15A, 125V, 14/3 AWG Cable

         L5-15P to C19

 L5-15P  to C19 power cord

* Terminated Plug and molded connector

* Available in multiple lengths

* Rated for 15A and 125V

* 14 AWG, 3 Wire SJT cable jacket

* Made to order

UL Listed, RoHS certified

Call 1-800-590-8610 for qty. discounts


Specifications:

Plug Type                        L5-15P
Connector Type C19
Length 8, 15 Foot (Custom Lengths Available)
Amperage 15 Amps
Voltage                               125V
Number of Conductors 3
Wire Gauge 14 AWG
Jacket Type SJT
Temperature Rating
105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity
Certifications cUL, UL Listed (File # E360079)

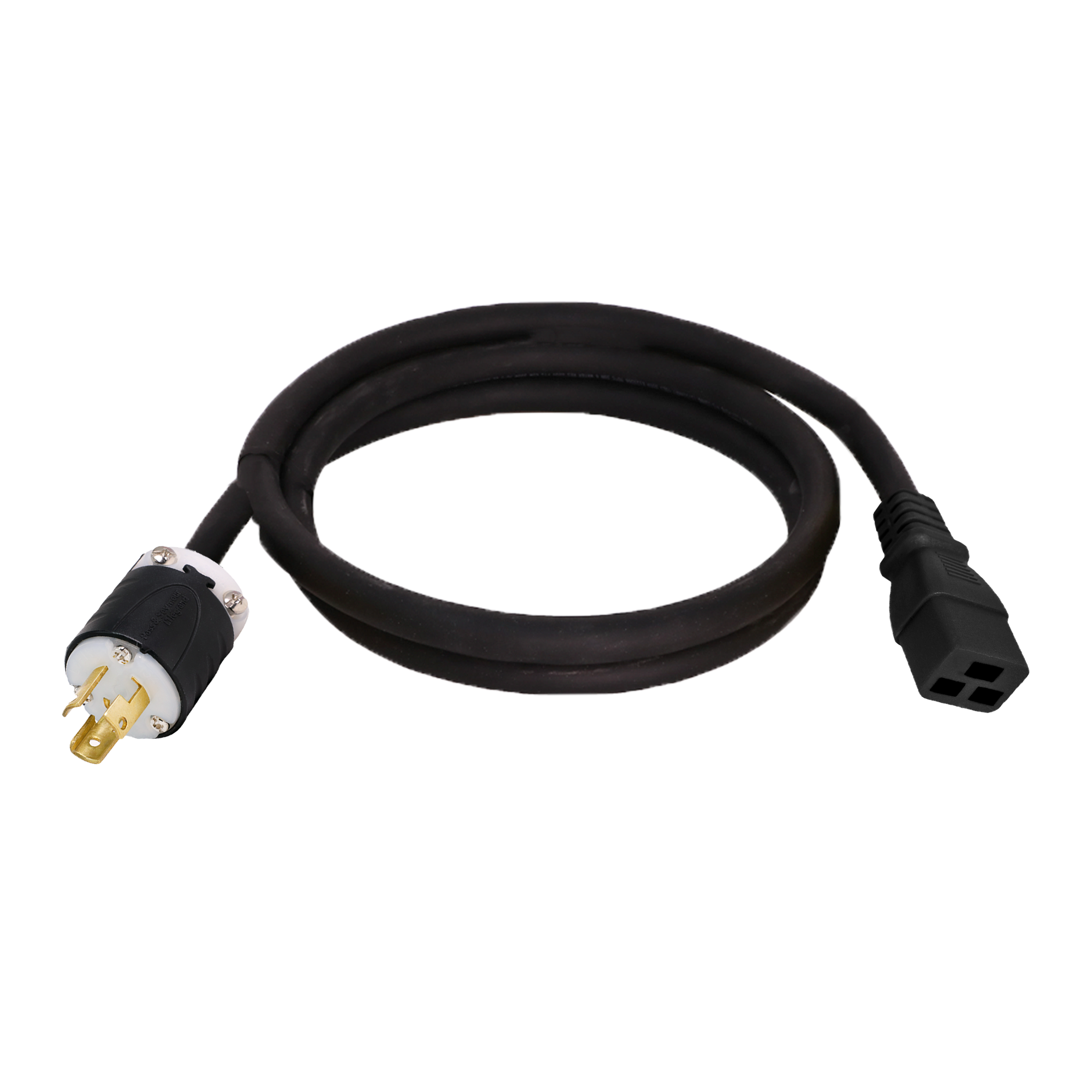

  L5-15P to C19 Power Cord

 Tech Notes:  UL Listed for the U.S. and Canada.

 Applications: Extend a NEMA L5-15P plug up to 15 Feet

 Related Terms: C19 to L5-15P cable,  NEMA L5-15 to IEC C19 cord,  L515P to C19,  Locking L5-15 power cord

Part Number: IBX-2905-XX (XX = Length)

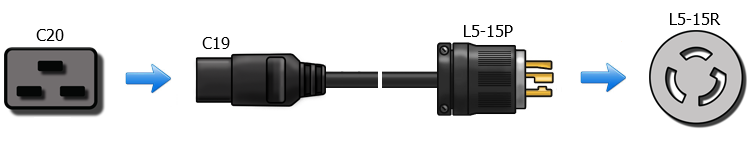

Application Shots: C19 to L5-15
