NEMA L6-15P to L6-15R Locking Power Cords
If you have any issues while placing your order, please give us a call at 1-800-590-8610
L6-15 Extension Cords, 15A, 250V, 14/3 SJOOW
$0.00
Power Cord, L6-15P Plug to L6-15R Connector, 15 Amps, 250V, 14/3 SJT
 |

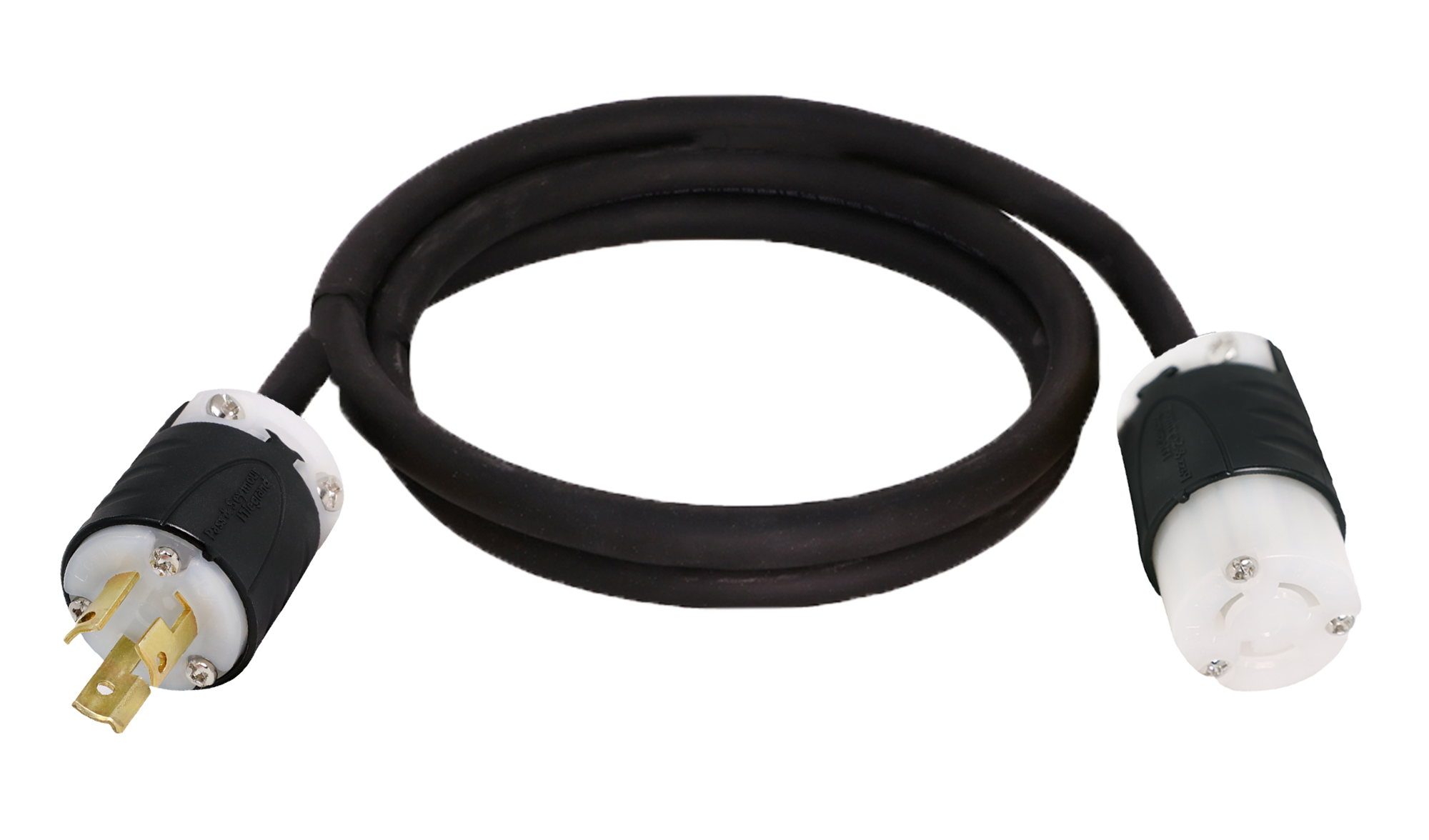

L6-15P to L6-15R extension cords
* Molded Plug and Connector * Available in multiple lengths * Rated for 15A and 250V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | L6-15P |
| Connector Type | L6-15R |
| Length | 10, 15, 25, 50, 75, 100 Foot (Custom Lengths Available) |
| Amperage | 15 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 14 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |
.jpg)
Tech Notes: UL Listed for the U.S. and Canada. Molded on both ends.
Applications: Extend a NEMA L6-15P plug up to 10 Feet
**This item is custom built to order.
Related Terms: L6-15R to L6-15P cable, NEMA L6-15 extension cord, L6-15P to L6-15R, Locking L6-15 power cord
Part Number: IBX-3803-X (X = Length)
Application Shots:
