NEMA Power Cords 6-20P / C15 Connector, 15A, 250V

$0.00

Plug a computer power supply into a standard 3-Prong 6-20R outlet

Choose Length *

SKU: IBX-2796-XX

Power Cord, NEMA 6-20P Plug to C15 Connector, 15 Amps, 250V, 14/3 SJT

blue c14 to c13

* 6-20P plug to C15 connector power cords

* Connect computers/servers to a rack pdu

* Molded plug/terminated connector

* Rated for 15A and 250V

* 14 AWG, 3 Wire SJT cable jacket

* UL Listed, RoHS certified

* Call 1-800-590-8610 for qty. discounts

 Specifications:

Plug Type                        6-20P
Connector Type C15
Length 3, 6, 10 Foot  (Custom Lengths Available – 24 hr. Turnaround)
Amperage 15 Amps
Voltage                               250V
Number of Conductors 3
Wire Gauge 14 AWG
Jacket Type SJT
Temperature Rating
 105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity
Certifications cUL, UL Listed (File # E360079)

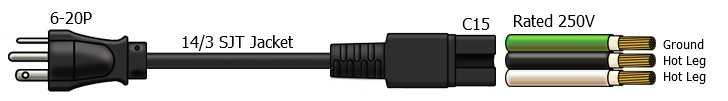

6-20P to C15

Tech Notes: 1 foot of 14/3 AWG wire w/ molded 6-20P plug and C15 connector

Applications: Adapt an IEC C14 plug to fit into a NEMA 6-20R outlet

**This item is custom built to order.

Related Terms: C15 to 6-20P cord adapter,  IEC320 620P power cord plug adapter

iron box power cordsPart Number: IBX-2796-XX (XX denotes length)

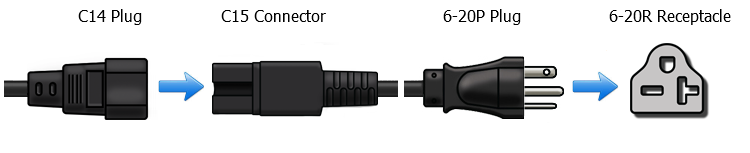

 Application Shots

C15 to 6-20
