Splitter cord breaks out 1 x L21-30P male plug to 3 x 6-20R female connectors
If you have any issues while placing your order, please give us a call at 1-800-590-8610

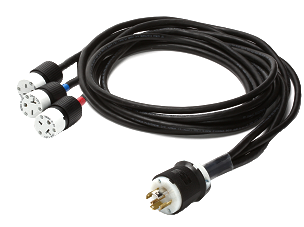

L21-30P to 3 x 6-20R Splitter Power Cord 20A, 208V, 12/3 SJT Jacket
$129.00
L21-30P to 6-20R Splitter Cord, 3 x 6-20R Legs, 20 Amps, 208V, 12/3 SJT
 |
* L21-30P to 6-20R X 3 power cords * Split a L21-30P plug out to 3x 6-20R branches * Custom leg lengths available * Rated for 20A and 208V * 12 AWG, 3 Wire SJT cable jacket * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | L21-30P |
| Connector Type | 6-20R X 3 |
| Length | 3, 6, 10 Foot Legs Standard (Custom Leg Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 208V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Tech Notes: 12 AWG wire is the maximum x3 that can be terminated into the L21-30P plug
Applications: Allows you to run three single phase devices from a 3-Phase L21-30R receptacle
Related Terms: L21-30P to 6-20R Splitter cable, L21-30P to NEMA 6-20R Splitter power cord, Locking Splitter cords
Part Number: IBX-2131-XX (XX = Length)

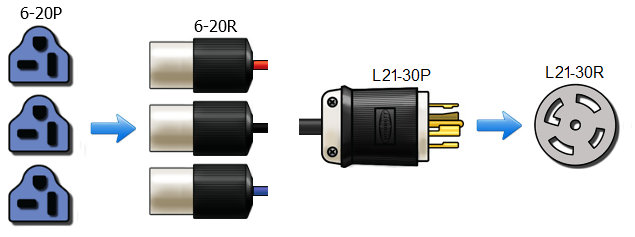

Application Shots:
