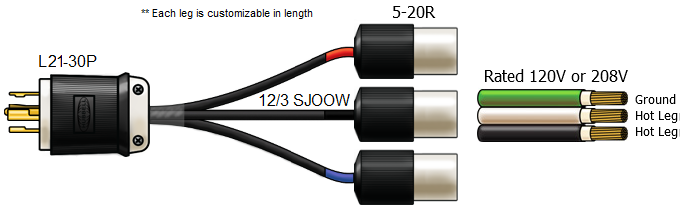

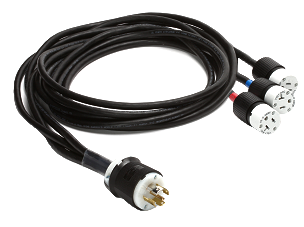

Splitter cord breaks out 1 x L21-30P male plug to 3x 5-20R female connectors
If you have any issues while placing your order, please give us a call at 1-800-590-8610
* L21-30P to 3x 5-20R power cords * Split a L21-30P plug out to 3x 5-20R branches * Custom leg lengths available * Rated for 20A and 120V * 12 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
Plug Type | L21-30P |
Connector Type | 5-20R x 3 |
Length | 10 Foot Legs Standard (Custom Leg Lengths Available) |
Amperage | 20 Amps |
Voltage | 120V |
Number of Conductors | 3 |
Wire Gauge | 12 AWG |
Jacket Type | SJT |
Temperature Rating |
105º C |
Color | Black |
Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Certifications | cUL, UL Listed |
Tech Notes: 12 AWG wire is the maximum x3 that can be terminated into the L21-30P plug

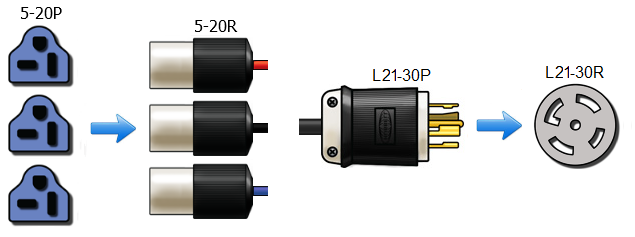

Applications: Allows you to run three single phase devices from a 3-Phase L21-30R receptacle
Part Number: IBX-2144-X (X = Length)
Application Shots:
