Breaks out phases A/B/C of an L21-30P plug to 3x single phase L5-20R’s
If you have any issues while placing your order, please give us a call at 1-800-590-8610

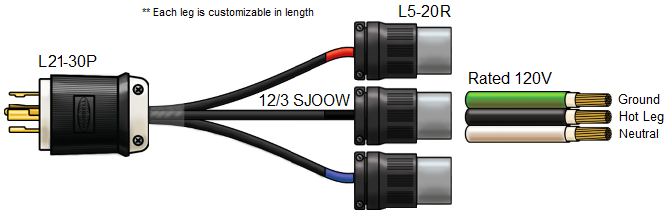

L21-30P to 3 x L5-20R 3-Phase Splitter Power Cord
$129.00
L21-30P to L5-20R Splitter Cord, 3 x L5-20R Legs, 3-Phase to Single Phase
 |
* L21-30P to L5-20R X 3 power cord
* Split a L21-30P plug out to 3x L5-20R branches * Custom leg lengths available * Rated for 20A and 120V * 12 AWG, 3 Wire SJT cable jacket * Three phase plug to single phase connectors * Call 1-800-590-8610 for qty. discounts |
Specifications:

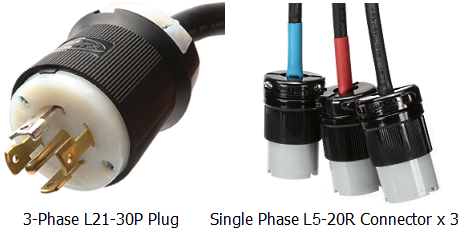

| Plug Type | L21-30P |
| Connector Type | L5-20R X 3 |
| Length | 3, 6, 10 Foot Legs Standard (Custom Leg Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 120V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
Tech Notes: 12 AWG wire is the maximum x3 that can be terminated into the L21-30P plug
Applications: Allows you to run three single phase devices from a 3-Phase L21-30R receptacle
Related Terms: L21-30P to L5-20R Splitter cable, L21-30P to NEMA L5-20R Splitter power cord, Locking Splitter cords
Part Number: IBX-2125-X (X = Length)
Application Shots:
