NEMA L21-20P to 5-15/20R Splitter Cables
If you have any issues while placing your order, please give us a call at 1-800-590-8610

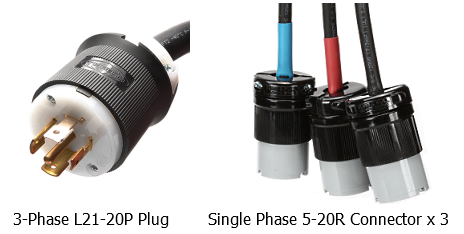

L21-20P to 3 x 5-15/20R Splitter Power Cords
$125.40
L21-20P to 5-15/20R Splitter Cord, 3 x 5-15/20R Legs, 20 Amps, 120-208V, 12/3 SJT
.png) |
* L21-20P to 5-15/20R X 3 power cords * Split a L21-20P plug out to 3x 5-15/20R branches * Custom leg lengths available * Rated for 20A and 120/208V * 12 AWG, 3 Wire SJT cable jacket * Call 1-800-590-8610 for qty. discounts |

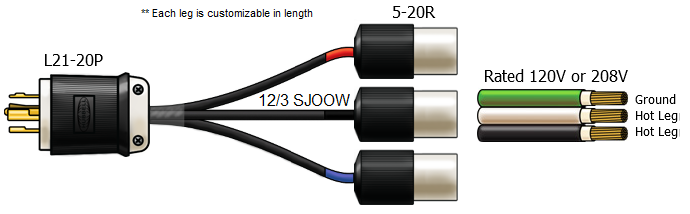

Specifications:
| Plug Type | L21-20P |
| Connector Type | 5-15/20R X 3 |
| Length | Legs are 3 Foot, 6 Foot, and 10 Foot (Custom Leg Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 120/208V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Tech Notes: 12 AWG wire is the maximum x3 that can be terminated into the L21-30P plug

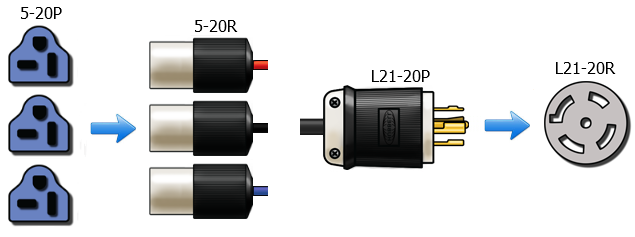

Applications: Allows you to run three single phase devices from a 3-Phase L21-30R receptacle
**This item is custom built to order.
Related Terms: L21-20P to 5-15/20R Splitter cable, L21-20P to NEMA 5-15/20R Splitter power cord, Locking Splitter cords
Part Number: IBX-2129-XX (XX = Length)
Application Shots:
