6-20P to 2x 6-20R Splitter Power Cords

$23.45

NEMA 6-20P to 2x 6-20R Y Splitter Cables

SKU: IBX-2X2730-04

 6-20P to 6-20R Splitter Cord, 2 x 6-20R Legs, 20 Amps, 250V, 12/3 SJT

    6-20P to 6-20R Splitter Power Cord

* 6-20P to 6-20R X 2 power cords

* Split a 6-20P plug out to 2x 6-20R branches

* Custom lengths available

* Rated for 20A and 250V

* 12 AWG, 3 Wire SJT cable jacket

* UL Listed, RoHS certified

* Call 1-800-590-8610 for qty. discounts

Specifications:

Plug Type                        6-20P
Connector Type 6-20R X 2
Length 2 Foot Main Branch + 2 Foot Legs (Custom Lengths Available)
Amperage 20 Amps
Voltage                               250V
Number of Conductors 3
Wire Gauge 12 AWG
Jacket Type SJT
Temperature Rating
 105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity
Certifications cUL, UL Listed (File # E360079)

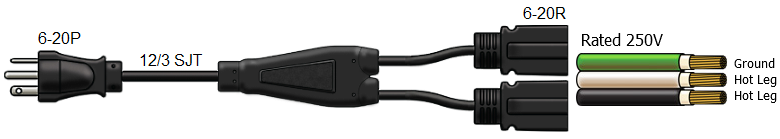

6-20P to 2 x 6-20R Power Cord Tech Notes: Splits a 6-20P male plug out to two female 6-20R connectors

 Applications: Connect server and network equipment to a rack PDU in a rack enclosure

 Related Terms: 6-20R to 6-20P Splitter cable,  NEMA 6-20P to 6-20R Splitter power cord, PDU Splitter cords

Part Number: IBX-2X2730-04 (04 = Length)

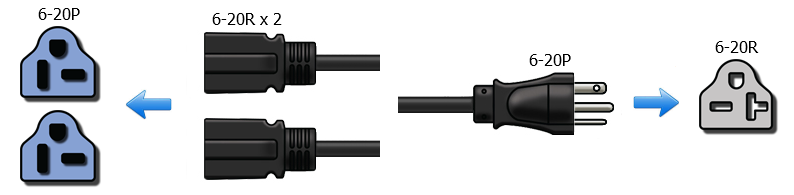

Application Shots:

6-20 x2 to 6-20
