L6-30P to L6-30R Splitter Cords 30A, 250V, 10/3 SJT Jacket

$0.00

Y splitter breaks out 1 x L6-30P male plug to 2 x L6-30R female connectors

Choose Length *

SKU: IBX-2X8730-XX

 L6-30P to L6-30R Splitter Cord, 2 x L6-30R Legs, 30 Amps, 250V, 10/3 SJT

L6-30P to 2 x L6-30R Splitter Cord

* L6-30P to L6-30R X 2 power cords

* Split a L6-30P plug out to 2x L6-30R branches

* 5 Foot (3ft. + 2ft. legs) and 12 Foot (10ft. + 2ft. legs)

* Rated for 30A and 250V

* 10 AWG, 3 Wire SJT cable jacket

UL Listed, RoHS certified

Call 1-800-590-8610 for qty. discounts


Specifications:

Plug Type                        L6-30P
Connector Type L6-30R X 2
Length  5 Foot (3 ft. + 2 ft. legs) and 12 Foot (10 ft. + 2 ft. legs)
Amperage 30 Amps
Voltage                               250V
Number of Conductors 3
Wire Gauge 10 AWG
Jacket Type SJT
Temperature Rating
105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity
Certifications cUL, UL Listed

  L6-30 Splitter Power CordTech Notes: Splits a L6-30P male plug out to two L6-30R connectors



Applications: Connect server and network equipment to a rack PDU in a rack enclosure

 Related Terms: L6-30P to L6-30R Splitter cable,  NEMA L6-30P to NEMA L6-30R Splitter power cord, Locking Splitter cords

Part Number: IBX-2X8730-XX (XX = Length)

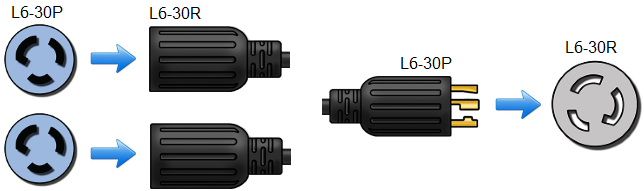

Application Shots: L6-30P to 2 x L6-30R
