NEMA L6-30P to 6-20 Y Splitter Cables
If you have any issues while placing your order, please give us a call at 1-800-590-8610
L6-30P to 2 x 6-20R Splitter Power Cords
$68.97

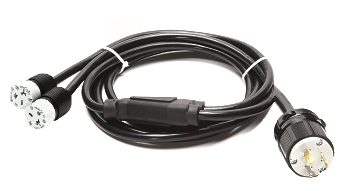

L6-30P to 6-20R Splitter Cord, 2 x 6-20R Legs, 20 Amps, 250V, 12/3 SJT
 |
* L6-30P to 6-20R X 2 power cords * Split a L6-30P plug out to 2x 6-20R branches * Custom lengths available * Rated for 20A and 250V * 12 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |

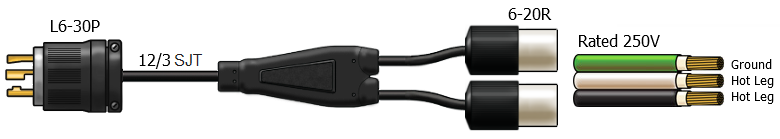

Specifications:
| Plug Type | L6-30P |
| Connector Type | 6-20R X 2 |
| Length | 8 Foot Main Branch + 2 Foot Legs (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 250V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
Tech Notes: Splits a L6-30P male plug out to two 6-20R connectors
Applications: Connect server and network equipment to a rack PDU in a rack enclosure
Related Terms: L6-30P to 6-20R Splitter cable, NEMA L6-30P to NEMA 6-20R Splitter power cord, Locking Splitter cords
Part Number: IBX-58036202-X (X = Length)

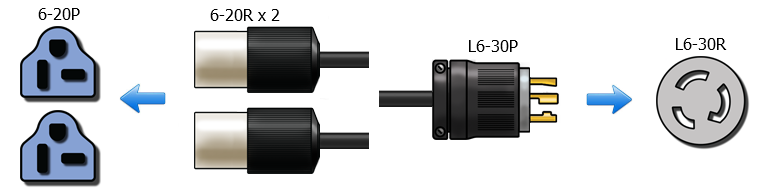

Application Shots:
