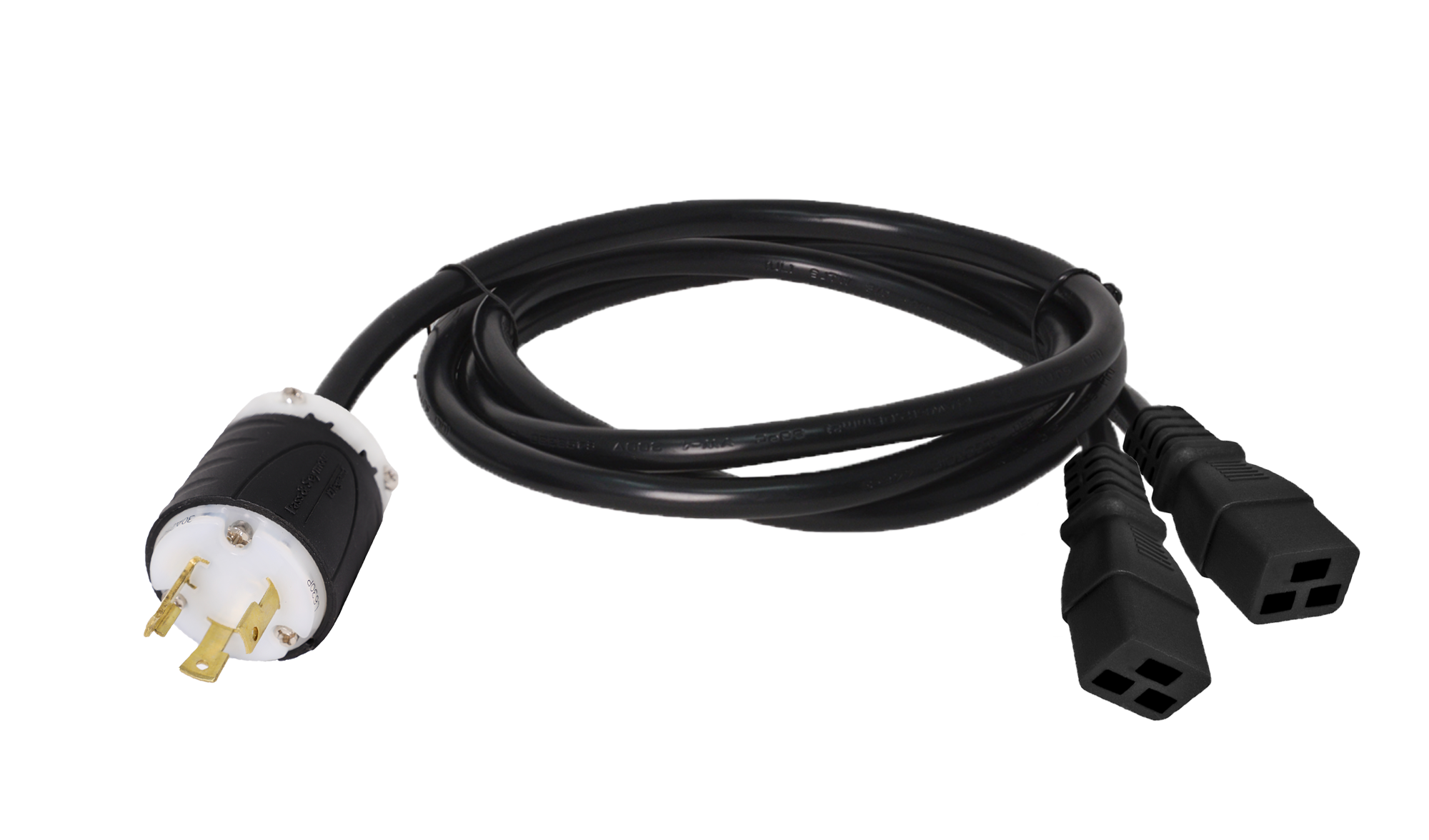

NEMA L6-30P to C19 Y Splitter Cables
If you have any issues while placing your order, please give us a call at 1-800-590-8610
* L6-30P to C19 X 2 power cords * Split a L6-30P plug out to 2x C19 branches * Custom lengths available * Rated for 20A and 250V * 12 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
Plug Type | L6-30P |
Connector Type | C19 X 2 |
Length | 8 Foot Main Branch + 2 Foot Legs (Custom Lengths Available) |
Amperage | 20 Amps |
Voltage | 250V |
Number of Conductors | 3 |
Wire Gauge | 12 AWG |
Jacket Type | SJT |
Temperature Rating |
105º C |
Color | Black |
Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Certifications | cUL, UL Listed |

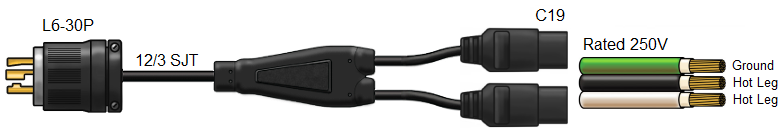

Tech Notes: Splits a L6-30P male plug out to two C19 connectors Applications: Connect server and network equipment to a rack PDU in a rack enclosure
Related Terms: L6-30P to C19 Splitter cable, NEMA L6-30P to IEC C19 Splitter power cord, Locking Splitter cords
Part Number: IBX-6801C192-XX (XX = Length)

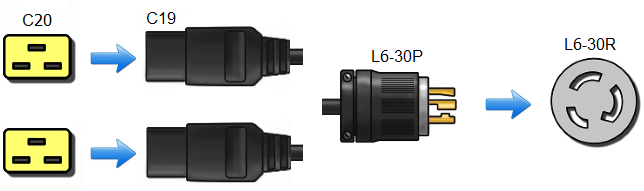

Application Shots:
