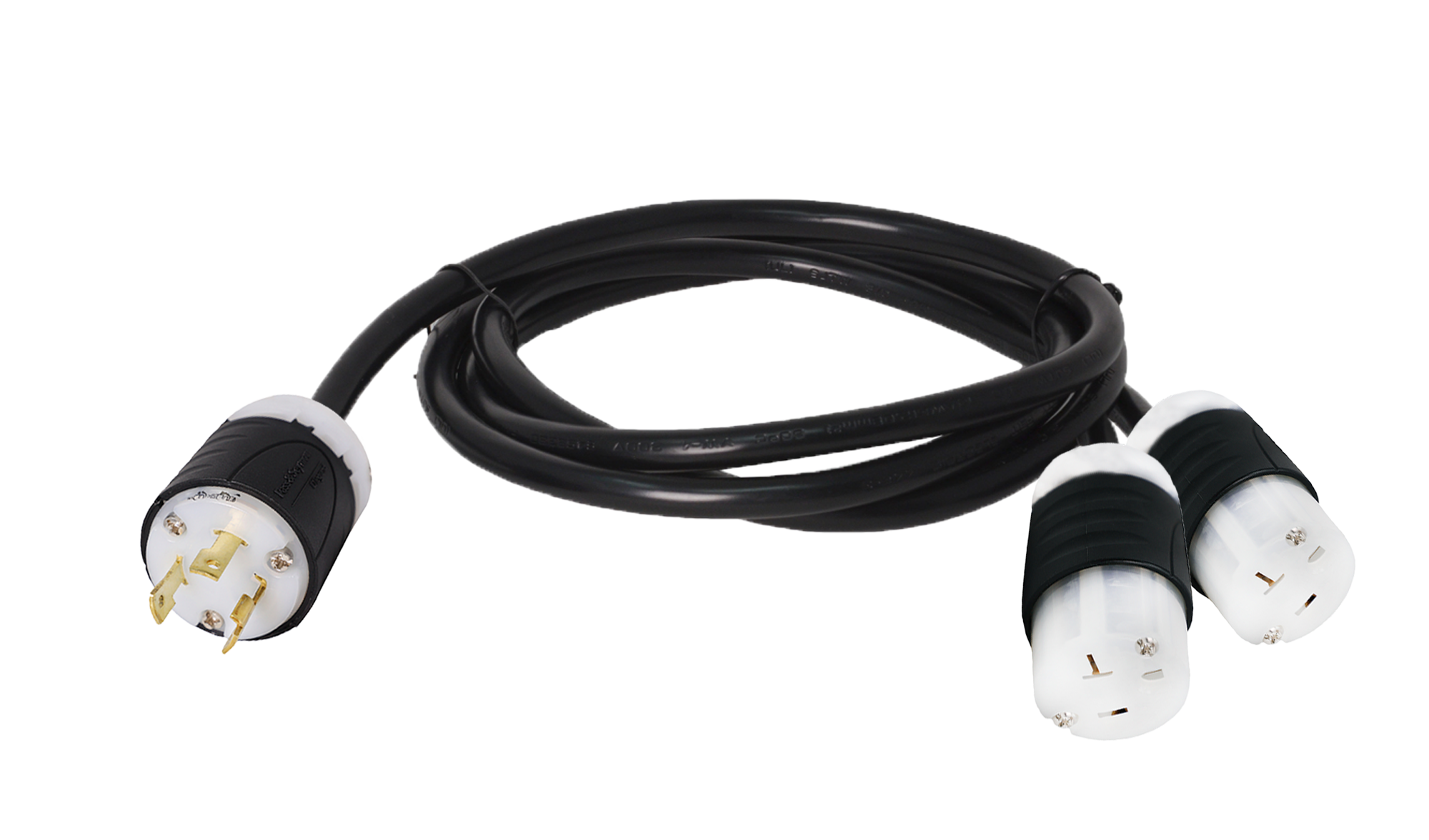

L5-30P to 2 x 5-20R Splitter Power Cords

$101.64

NEMA L5-30P to 5-20R Y Splitter Cables

SKU: IBX-58015202-10

 L5-30P to 5-20R Splitter Cord, 2 x 5-20R Legs, 20 Amps, 125V, 12/3 SJT

    blue c14 to c13 * L5-30P to 5-20R X 2 power cords

* Split a L5-30P plug out to 2x 5-20R branches

* Custom lengths available

* Rated for 20A and 125V

* 12 AWG, 3 Wire SJT cable jacket

* UL Listed, RoHS certified

* Call 1-800-590-8610 for qty. discounts

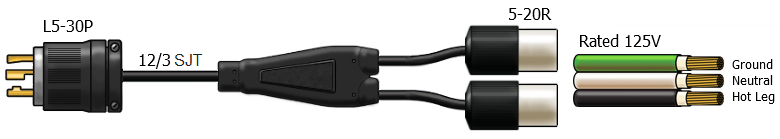

Specifications:

Plug Type      L5-30P
Connector Type 5-20R X 2
Length 8 Foot Main Branch + 2 Foot Legs (Custom Lengths Available)
Amperage 20 Amps
Voltage                               125V
Number of Conductors 3
Wire Gauge 12 AWG
Jacket Type SJT
Temperature Rating
 105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity
Certifications cUL, UL Listed

 Tech Notes: Splits a L5-30P male plug out to two 5-20R female connectors

 Applications: Connect server and network equipment to a rack PDU in a rack enclosure

 Related Terms: L5-30P to 5-20R Splitter cable,  NEMA L5-30P to IEC 5-20R Splitter power cord, Locking Splitter cords

Part Number: IBX-58015202-X (X = Length)

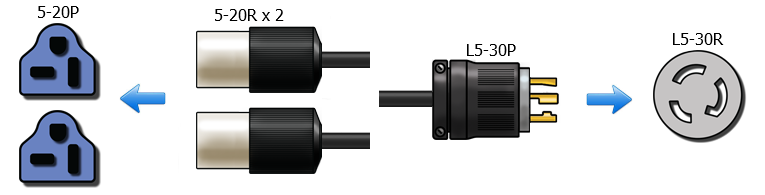

Application Shots:
