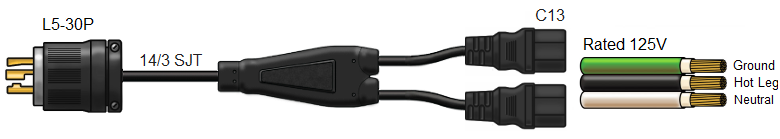

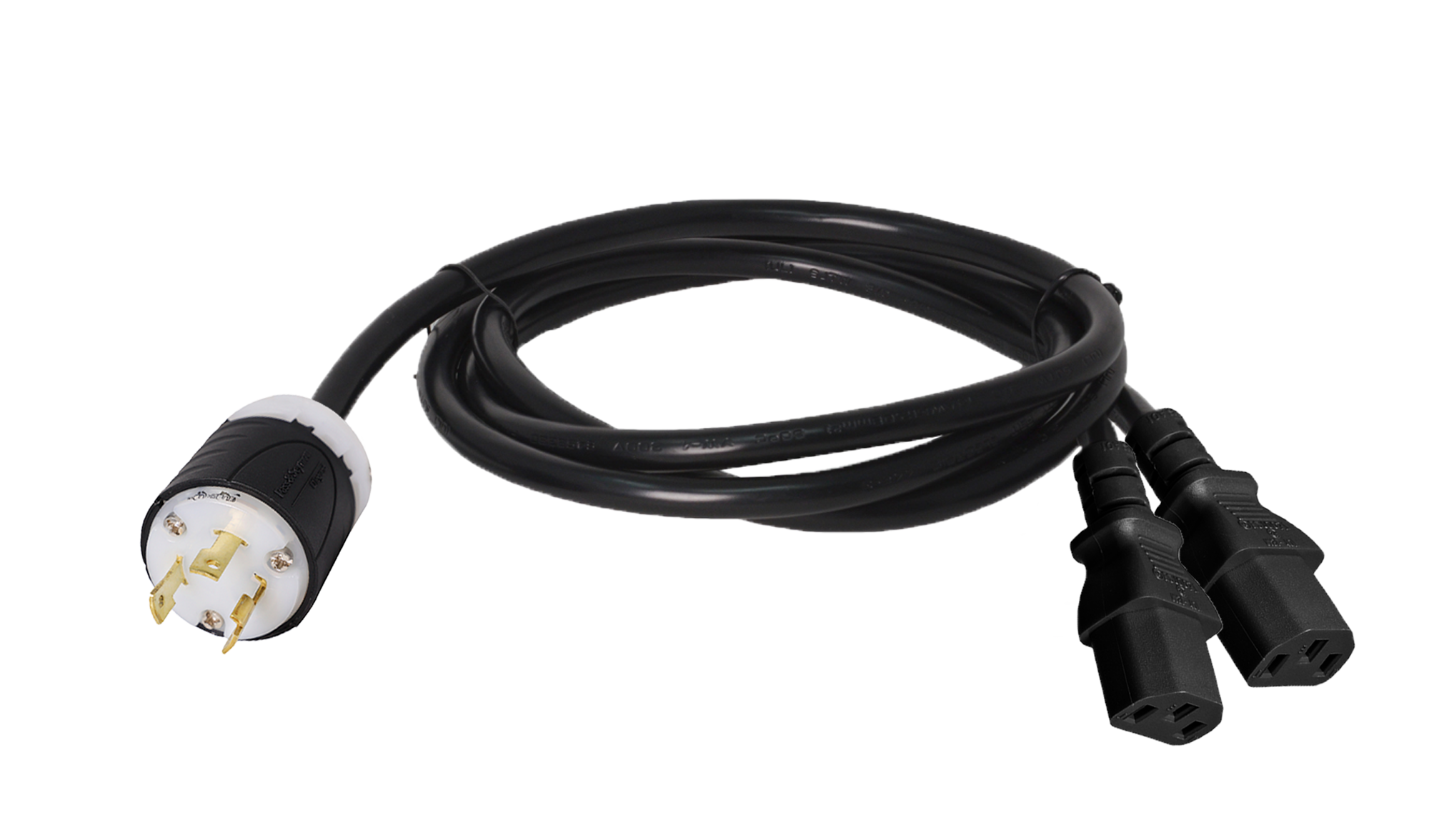

NEMA L5-30P to C13 Y Splitter Cables
If you have any issues while placing your order, please give us a call at 1-800-590-8610
* L5-30P to C13 X 2 power cords * Split a L5-30P plug out to 2x C13 branches * Custom lengths available * Rated for 15A and 125V * 14 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:

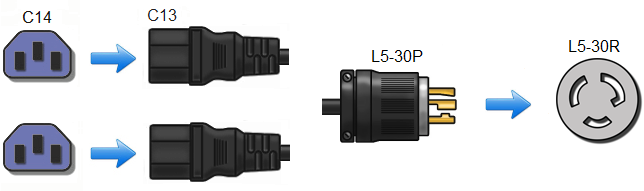

Tech Notes: Splits a L5-30P male plug out to two C13 connectors Applications: Connect server and network equipment to a rack PDU in a rack enclosure Related Terms: L5-30P to C13 Splitter cable, NEMA L5-30P to IEC C13 Splitter power cord, Locking Splitter cordsPart Number: IBX-5801C132-X (X = Length)Application Shots: Fax Purchase Orders to 1-800-447-1381 or email [email protected]
Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
Plug Type | L5-30P |
Connector Type | C13 X 2 |
Length | 8 Foot Main Branch + 2 Foot Legs (Custom Lengths Available) |
Amperage | 15 Amps |
Voltage | 125V |
Number of Conductors | 3 |
Wire Gauge | 14 AWG |
Jacket Type | SJT |
Temperature Rating |
105º C |
Color | Black |
Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Certifications | cUL, UL Listed |
