NEMA L5-20P to L5-20R Y Splitter Cables
If you have any issues while placing your order, please give us a call at 1-800-590-8610

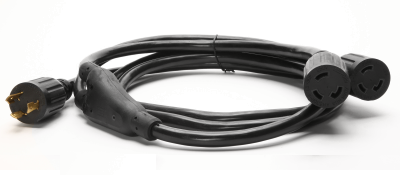

L5-20P to 2 x L5-20R Splitter Power Cords
$0.00
L5-20P to L5-20R Splitter Cord, 2 x L5-20R Legs, 20 Amps, 125V, 12/3 SJT
.png) |
* L5-20P to L5-20R X 2 power cords
* Split a L5-20P plug out to 2x L5-20R branches * Custom lengths available * Rated for 20A and 125V * 12 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | L5-20P |
| Connector Type | L5-20R X 2 |
| Length | 3 and 8 Foot Main Branch + 2 Foot Legs (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |
Tech Notes: Splits a L5-20P male plug out to two L5-20R female connectors
Applications: Connect server and network equipment to a rack PDU in a rack enclosure
Related Terms: L5-20R to L5-20R Splitter cable, NEMA L5-20P to IEC L5-20R Splitter power cord, Locking Splitter cords
Part Number: IBX-2X8620-XX (XX = Length)

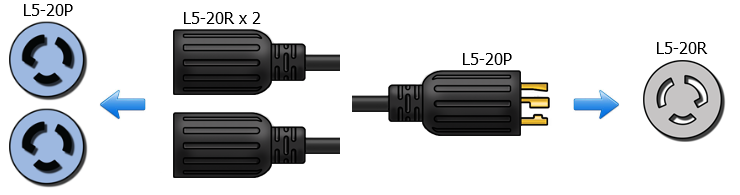

Application Shots:
.png)
