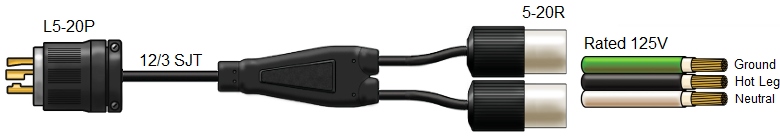

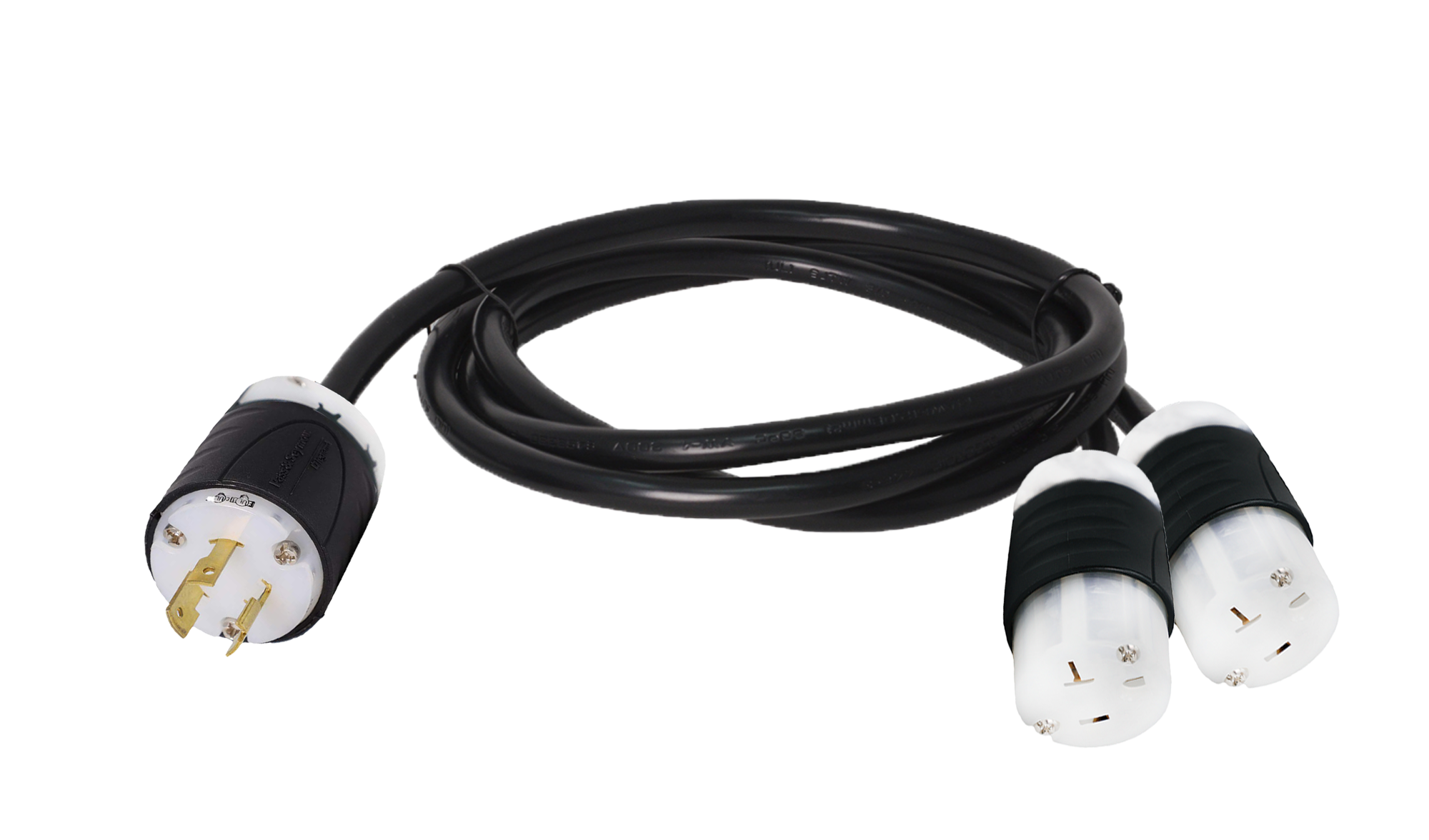

NEMA L5-20P to 5-20R Y Splitter Cables
If you have any issues while placing your order, please give us a call at 1-800-590-8610
* L5-20P to 5-20R X 2 power cords * Split a L5-20P plug out to 2x 5-20R branches * Custom lengths available * Rated for 20A and 125V * 12 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
Plug Type | L5-20P |
Connector Type | 5-20R X 2 |
Length | 8 Foot Main Branch + 2 Foot Legs (Custom Lengths Available) |
Amperage | 20 Amps |
Voltage | 125V |
Number of Conductors | 3 |
Wire Gauge | 12 AWG |
Jacket Type | SJT |
Temperature Rating |
105º C |
Color | Black |
Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Certifications | cUL, UL Listed |
Tech Notes: Splits a L5-20P male plug out to two 5-20R female connectors
Applications: Connect server and network equipment to a rack PDU in a rack enclosure
**This item is custom built to order.
Part Number: IBX-48015202-X (X = Length)

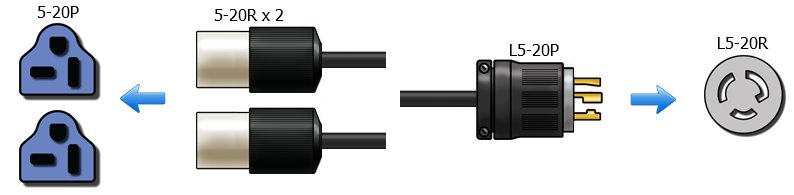

Application Shots:
