L6-30P to C19 Power Cords, 20A, 250V, 12/3 SJT

$0.00

NEMA 20 Amp L6-30P to IEC 60320 C19 Power Cables

Choose Length *

SKU: IBX-4943-XX

NEMA L6-30P to IEC C19 Power Cords – 20A, 250V, 12/3 AWG Cable

    L6-30 to C19 cord  L6-30P to C19 power cords

* Molded Plug and Connector

* Available in multiple lengths

* Rated for 20A and 250V

* 12 AWG, 3 Wire SJT cable jacket

UL Listed, RoHS certified

Call 1-800-590-8610 for qty. discounts


Specifications:

Plug Type      L6-30P
Connector Type C19
Length 8, 12, 15, 25 Foot (Custom Lengths Available)
Amperage 20 Amps
Voltage                               250V
Number of Conductors 3
Wire Gauge 12 AWG
Jacket Type SJT
Temperature Rating
105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity
Certifications cUL, UL Listed (File # E360079)

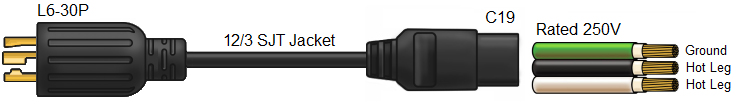

L6-30P to C19 Power Cord



Tech Notes:  UL Listed for the U.S. and Canada. Molded on both ends.

 Applications: Connect server and network equipment to a rack PDU in a rack enclosure

 Related Terms: C19 to L6-30P cable,  NEMA L6-30 to IEC C19 cord,  l630p to c19,  Locking L6-30 power cord

Part Number: IBX-4943-X (X = Length)

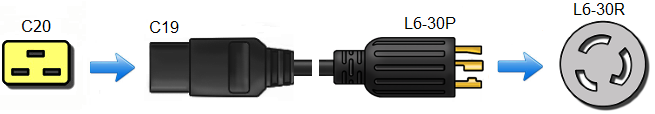

Application Shots: L6-30P to C19
