NEMA 20 Amp L5-30P to IEC 60320 C19 Power Cables
If you have any issues while placing your order, please give us a call at 1-800-590-8610
L5-30P to C19 Power Cords, 20A, 125V, 12/3 SJT
$0.00

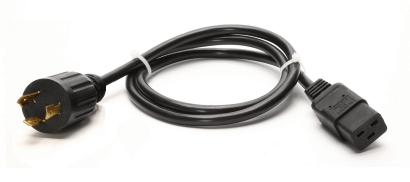

NEMA L5-30P to IEC C19 Power Cords – 20A, 125V, 12/3 AWG Cable
.png) |

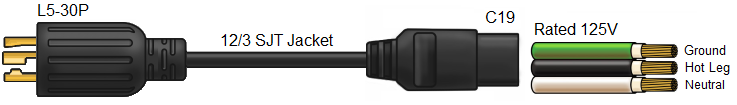

L5-30P to C19 power cords
* Molded Plug and Connector * Available in multiple lengths * Rated for 20A and 125V * 12 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | L5-30P |
| Connector Type | C19 |
| Length | 8 and 15 Foot (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed (File # E360079) |
.png)
Tech Notes: UL Listed for the U.S. and Canada. Molded on both ends.
Applications: Extend a NEMA L5-30P plug up to 15 Feet
Related Terms: C19 to L5-30P cable, NEMA L5-30 to IEC C19 cord, l530p to c19, Locking L5-30 power cord
Part Number: IBX-4941-X (X = Length)

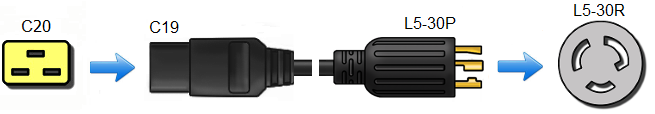

Application Shots: .png)
