L5-30P to C13 Power Cords, 15A, 125V, 14/3 SJT

$0.00

Convert a device with a male C14 plug or inlet into an L5-30R receptacle

Choose Length *

SKU: IBX-6154-XX

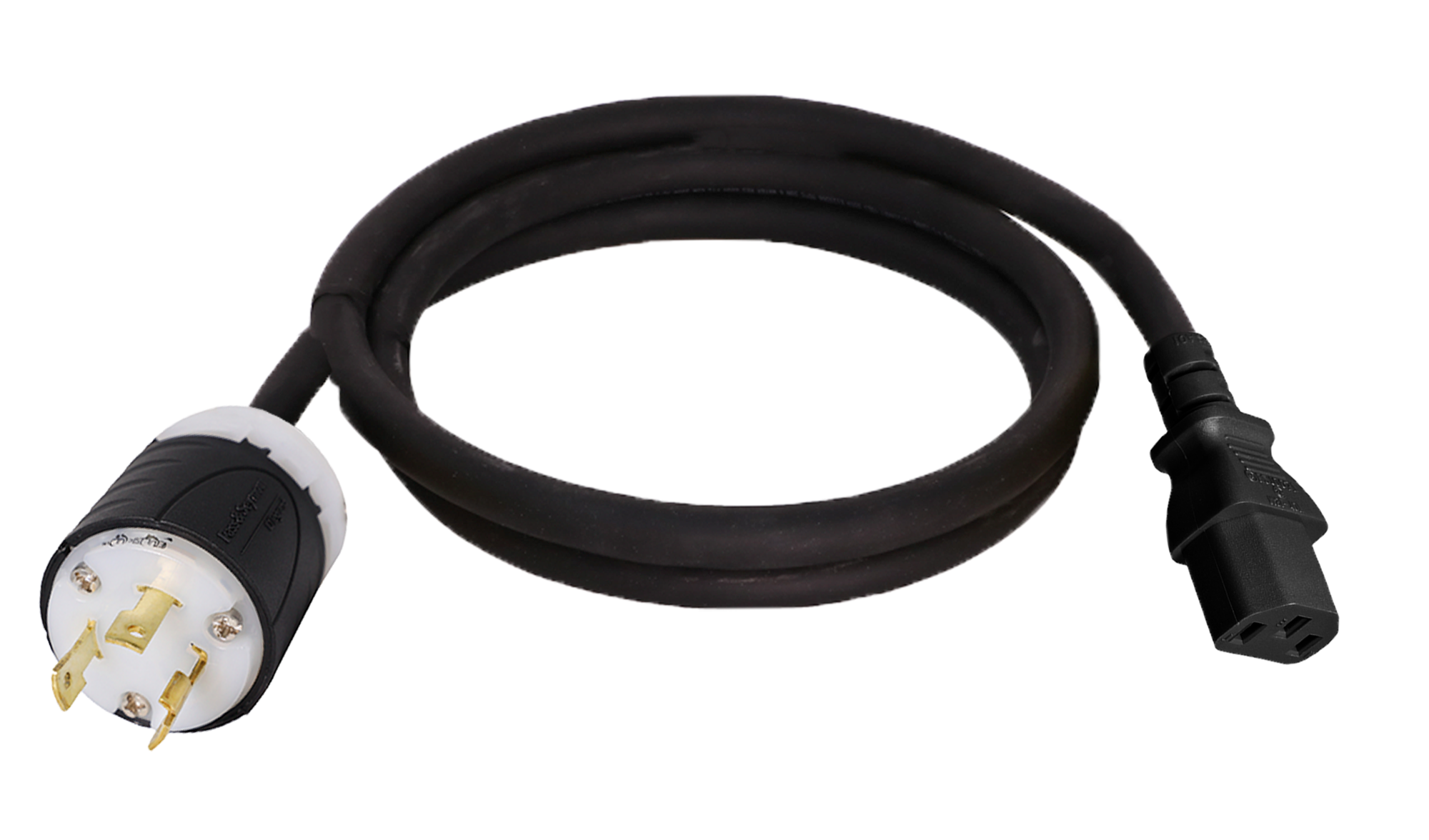

NEMA L5-30P to IEC C13 Power Cords – 15A, 125V, 14/3 AWG Cable

      l5-30 to c13 cord

 L5-30P to C13 power cords

* Molded Plug and Connector

* Available in multiple lengths

* Rated for 15A and 125V

* 14 AWG, 3 Wire SJT cable jacket

UL Listed, RoHS certified

Call 1-800-590-8610 for qty. discounts


Specifications:

Plug Type                        L5-30P
Connector Type C13
Length 10 and 15 Foot (Custom Lengths Available)
Amperage 15 Amps
Voltage                               125V
Number of Conductors 3
Wire Gauge 14 AWG
Jacket Type SJT
Temperature Rating
105º C
Color Black
Testing Tested for Voltage Hi-Potential, Continuity, and Polarity
Certifications cUL, UL Listed (File # E360079)

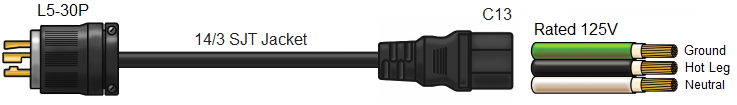

 L5-30P to C13 Power Cord

  Tech Notes:  UL Listed for the U.S. and Canada. Molded on both ends.

 Applications: Extend a NEMA L5-30P plug up to 15 Feet

**This item is custom built to order.

 Related Terms: C13 to L5-30P cable,  NEMA L5-30 to IEC C13 cord,  l530p to c13,  Locking L5-30 power cord

Part Number: IBX-6154-X (X = Length)

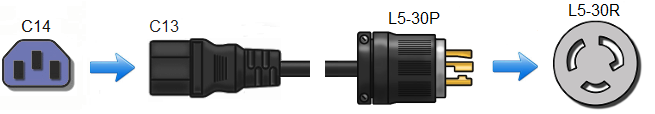

Application Shots: L5-30P to C13
