NEMA L5-30P to L5-30R Locking Power Cords
If you have any issues while placing your order, please give us a call at 1-800-590-8610
L5-30 Extension Power Cords, 30A, 125V, 10/3 SJT
$0.00

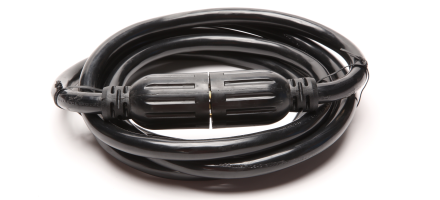

L5-30 Extension Power Cords, 30A, 125V, 10/3 AWG Cable (L5-30P to L5-30R)
 |
L5-30P to L5-30R extension cords
* Molded Plug and Connector * Available in multiple lengths * Rated for 30A and 125V * 10 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | L5-30P |
| Connector Type | L5-30R |
| Length | 3, 6, 10, 15, 25 Foot (Custom Lengths Available) |
| Amperage | 30 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 10 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
Tech Notes: UL Listed for the U.S. and Canada. Molded on both ends.
Applications: Extend a NEMA L5-20P plug up to 25 Feet
Related Terms: L5-30R to L5-30P cable, NEMA L5-30 extension cord, L5-30P to L5-30R, Locking L5-30 power cord
Part Number: IBX-5801M-XX (XX = Length)
Application Shots: .png)
