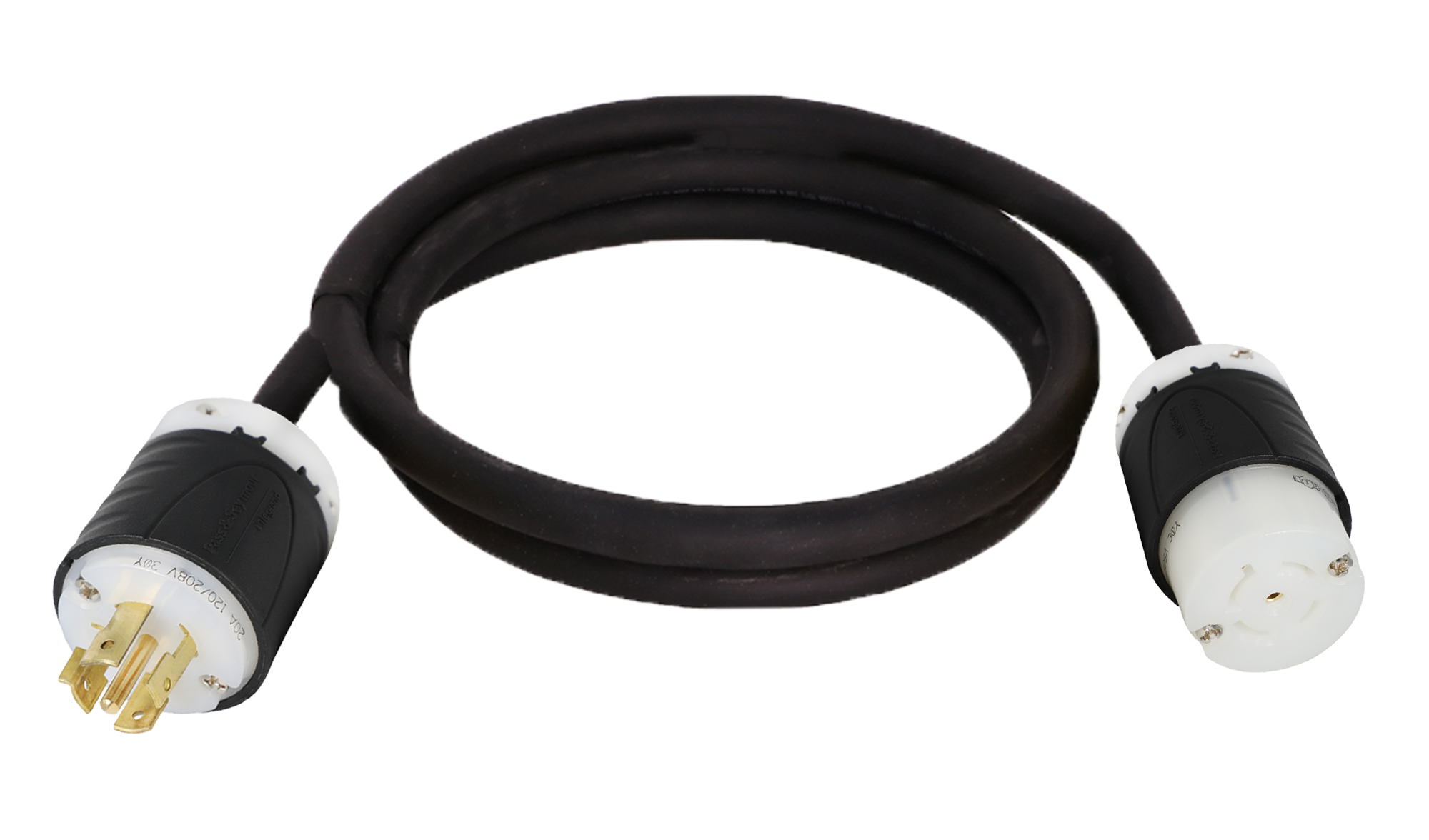

NEMA L21-20P to L21-20R Locking Power Cords
If you have any issues while placing your order, please give us a call at 1-800-590-8610

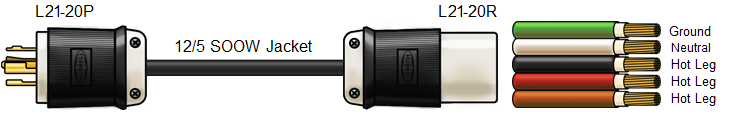

*L21-20P to L21-20R extension cords * Heavy duty locking plug and connector * Available in multiple lengths * Rated for 20A and 120/208V * 12 AWG, 5 Wire SOOW cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
Plug Type | L21-20P |
Connector Type | L21-20R |
Length | 10, 20, 30, 50, 75, 100 Foot (Custom Lengths Available) |
Amperage | 20 Amps |
Voltage | 120/208V |
Number of Conductors | 5 |
Wire Gauge | 12 AWG |
Jacket Type | SOOW |
Temperature Rating |
105º C |
Color | Black |
Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
Certifications | cUL, UL Listed |
Tech Notes: UL Listed for the U.S. and Canada.
Applications: Extend a NEMA L21-20P plug up to 100 Feet
**This item is custom built to order.
Part Number: IBX-4807-X (X = Length)
Application Shots:
