NEMA L5-20P to L5-20R Locking Power Cords
If you have any issues while placing your order, please give us a call at 1-800-590-8610
L5-20 Extension Cords, 20A, 125V, 12/3 SJOOW
$0.00

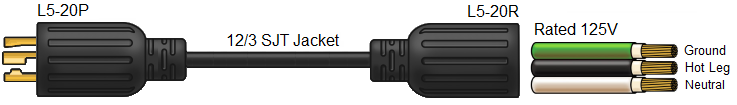

L5-20 Extension Power Cords, 20A, 125V, 12/3 AWG Cable (L5-20P to L5-20R)
 |
* L5-20P to L5-20R extension cords * Molded Plug and Connector * Available in multiple lengths * Rated for 20A and 125V * 12 AWG, 3 Wire SJT cable jacket * UL Listed, RoHS certified * Call 1-800-590-8610 for qty. discounts |
Specifications:
| Plug Type | L5-20P |
| Connector Type | L5-20R |
| Length | 10, 15, 25 Foot (Custom Lengths Available) |
| Amperage | 20 Amps |
| Voltage | 125V |
| Number of Conductors | 3 |
| Wire Gauge | 12 AWG |
| Jacket Type | SJT |
| Temperature Rating |
105º C |
| Color | Black |
| Testing | Tested for Voltage Hi-Potential, Continuity, and Polarity |
| Certifications | cUL, UL Listed |
.png)
Tech Notes: UL Listed for the U.S. and Canada. Molded on both ends.
Applications: Extend a NEMA L5-20P plug up to 25 Feet
Related Terms: L5-20R to L5-20P cable, NEMA L5-20 extension cord, L5-20P to L5-20R, Locking L5-20 power cord
Part Number: IBX-4801M-X (X = Length)

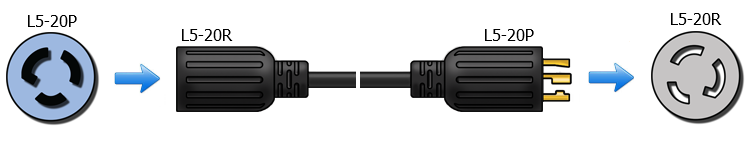

Application Shots:
