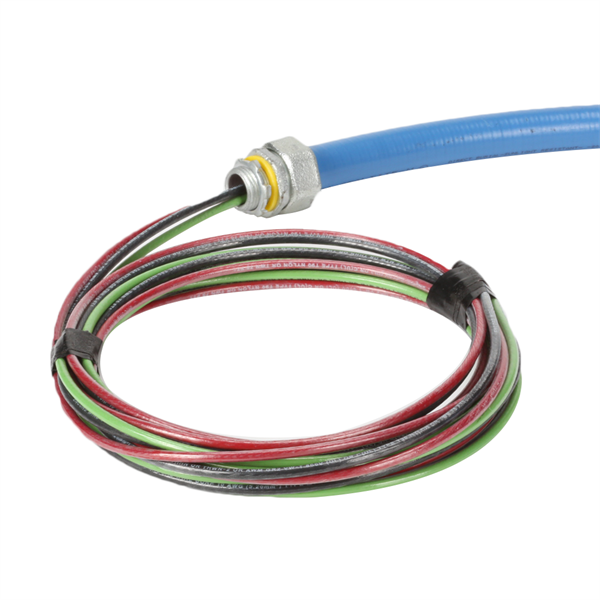

Liquid tight pin and sleeve PDU cable with 1 x 420C9W connector and an 8′ wire tail
If you have any issues while placing your order, please give us a call at 1-800-590-8610
420C9W PDU Whips, 20A, 250V, 4-Wire Pin and Sleeve Cable
$0.00
IEC 309 420C9W PDU Whips – 20A, 250V 3-Phase Data Center Power Cables
Download PDU Whip Excel Configurator – Use for large quantities and further customizaton options – email [email protected]
.png) |

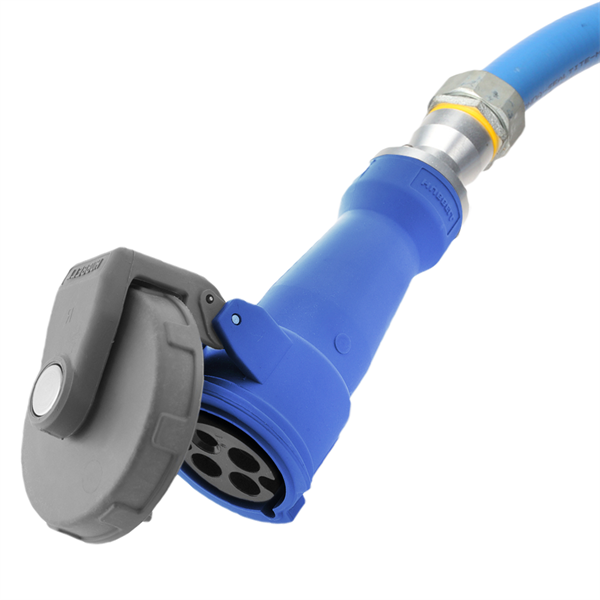

* Power whip w/ 1 x 420C9W Connector
* For use in data center raised floors * Available in 10 colors, custom lengths * Custom labeling available * Several mounting options available * Custom tails for termination to breaker panel * UL Listed |
Specifications:
| Receptacle | 420C9W x 1 |
| Amperage | 20A |
| Voltage | 250V |
| Phase | 3 Phase |
| Lengths | 5 foot – 200 foot – Custom Lengths |
| Colors Available |
Blue, Red, Yellow, Black, Green, Purple, Gray, Orange, White, Pink |
| Number of Wires | 4 Wire |
| Wire Gauge | 12 AWG |
| Cable | THHN Stranded Wire (Green/Black/Red/Blue) |
| Conduit Width | 1/2″ |
| Circuit Breaker | Optional |
.png)
Technical Notes: UL Listed, Uses Anaconda LFMC SealTite conduit, Hubbell Receptacles
Applications: For use in raised data center floors to provide power distribution to server rack equipment
Part number: IBX-420C9W-XXYY – XX Denotes Length, YY is color (BLK, BL, RD, GY, GN, PK, PU, YL, OR, WH)
Custom Made and Non-Returnable
420C9W whip, IEC 309 PDU cables, HBL420C9W Whips, Raised floor cables, Power Distribution Assemblies
Customization Options:
Fax Purchase Orders to 1-800-447-1381 or email [email protected]
Call Toll-Free 1-800-590-8610 if you need technical assistance or if you need a quote
