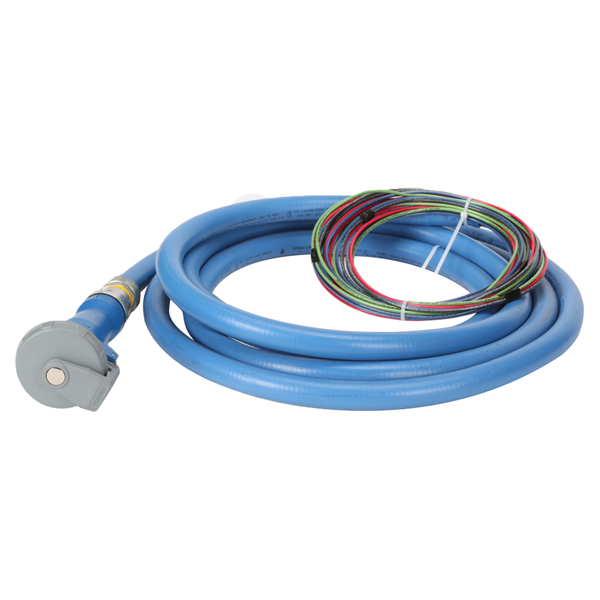

Liquid tight PDU cable with 1 x 330C6W connector and an 8′ wire tail
If you have any issues while placing your order, please give us a call at 1-800-590-8610
330C6W PDU Whips, 30A, 250V IEC 309 Power Cables
$0.00
IEC 309 330C6W PDU Whips – 30A, 250V Data Center Power Cables
Download PDU Whip Excel Configurator – Use for large quantities and further customization options – email [email protected]
 |
* Power whip w/ 1 x 330C6W Connector
* For use in data center raised floors * Available in 8 colors, custom lengths * Custom labeling available * Several mounting options available * Custom tails for termination to breaker panel * UL Listed |
Specifications:
| Receptacle | 330C6W x 1 |
| Amperage | 30A |
| Voltage | 250V |
| Phase | Single Phase |
| Lengths | 5 foot – 200 foot |
| Colors Available |
Blue, Red, Yellow, Black, Green, Gray, Orange, White |
| Number of Wires | 3 Wire |
| Wire Gauge | 12 AWG |
| Cable | THHN Stranded Wire (Green/Black/Red) |
| Conduit Width | 1/2″ |
| Circuit Breaker | Optional |
Technical Notes: UL Listed, Uses Anaconda LFMC SealTite conduit
Applications: For use in raised data center floors for providing power distribtuon to server rack equipment
Part number: IBX-320C6W-XXYY – XX Denotes Length, YY is color (BLK, BL, RD, GY, GN, YL, OR, WH)
Custom Made and Non-Returnable
330C6Wwhip, IEC 309 PDU cable, 30 Amp 250V Whips, IEC PDU Whips, Raised Floor PDU cables
Customization Options:
