Custom PDU cables with 1 x CS8469 receptacle and a custom length wire tail for use in raised data center floors
If you have any issues while placing your order, please give us a call at 1-800-590-8610
CS8469 PDU Whips, 50A, 480V, 3-Wire Underfloor Cables
$0.00
CS8469 PDU Whips – 50A, 480V, 3-Wire Data Center PDU Cables
Download PDU Whip Excel Configurator – Use for large quantities and further customizaton options – email [email protected]
 |

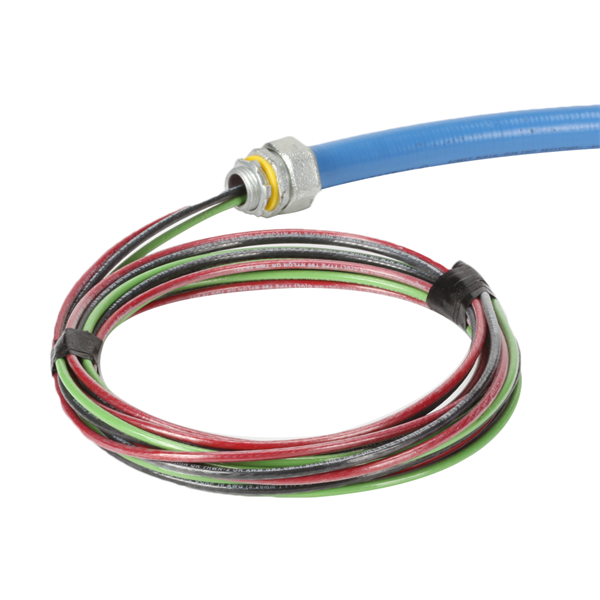

* Data Center PDU cables w/ 1 x CS8469 outlet Box * For use in Data Center raised floors * Available in 10 colors, custom lengths and configurations * Custom labeling available * Several mounting options available * Custom length tails for termination to breaker panel * UL Listed, Built to NEC Article 645.50(E)
|
Specifications:
| Receptacle | Twist-Lock CS8469 x 1 |
| Amperage | 50A |
| Voltage | 480V |
| Phase | Single Phase |
| Lengths | 5 foot – 200 foot – Custom Lengths |
| Colors Available |
Blue, Red, Yellow, Black, Green, Purple, Gray, Orange, White, Pink |
| Number of Wires | 3 Wire |
| Wire Gauge | 8 AWG |
| Cable | THHN Stranded Wire (Green/Black/Red/Blue) |
| Conduit Width | 3/4″ |
| Circuit Breaker | Optional |
Technical Notes: UL Listed, Uses Anaconda LFMC SealTite conduit, Hubbell Receptacles
Applications: For use in raised data center floors to provide power distribution to server rack equipment
Part number: IBX-CS8469R1-XXYY – XX Denotes Length, YY is color (BLK, BL, RD, GY, GN, PK, PU, YL, OR, WH)
Custom Made and Non-Returnable
CS8469 whips, CS8469 PDU cable, LFMC Conduit, 50A Power Distribution Assemblies, Branch Circuit Cables
Customization Options:
.png)
